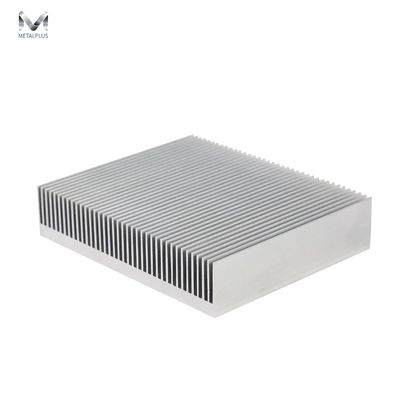

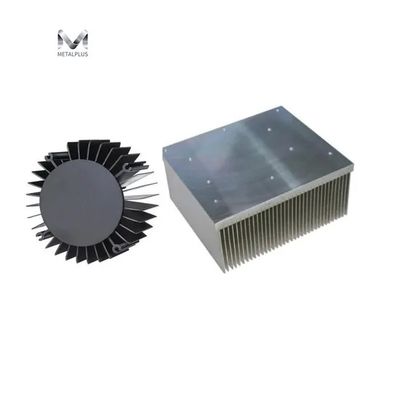

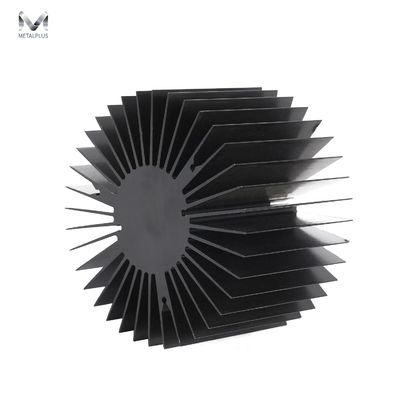

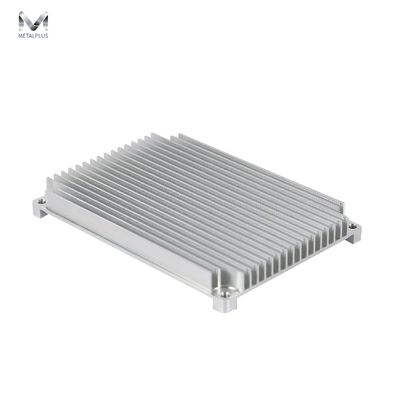

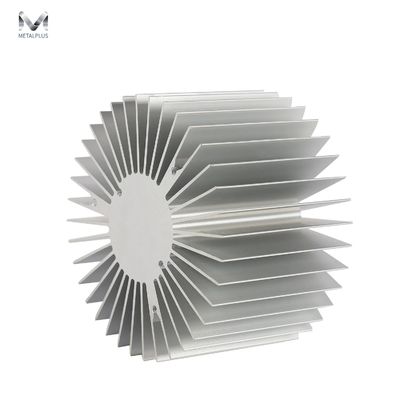

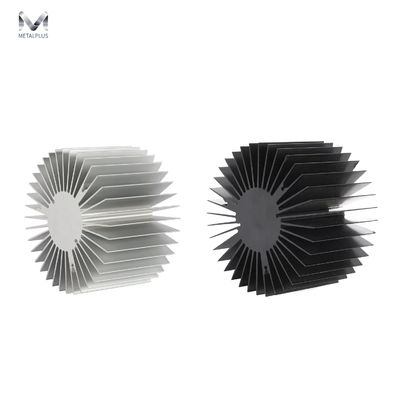

6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

Imagem Grande :  6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

Detalhes do produto:
documento: Folheto PDF do produto
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 500
Preço: 1.99
Contato
Descrição de produto detalhada
Material: Alumínio Cor: Preto
Forma: Redondo Tratamento de superfície: Acabamento do moinho, anodizado, explosão de areia, revestimento em pó
Tipo de liga: 6063, 6061, 6060, 6005 Resistência à tracção: 160-265MPA
Força de escoamento: 110-245MPA Alongamento: ≥ 8%
Capacidade de produção: 50000PCS /MONTH Diâmetro máximo: 350mm
Diâmetro máximo de extrusão: 600 mm Comprimento da usinagem CNC: até 6 medidores
Espessura de perfuração: sobre 5mm Cores anodizantes: Prata, preto, ouro, champanhe, imitação de aço
Tempo de entrega: 7 ~ 10 dias
Destacar:

6063 Alloy LED Light Heatsink

,

2 Year Warranty Aluminum Extrusion Profile

,

ISO9001 Certified Aluminum Heat Sink

Silvery Anodized Custom LED Light Heatsink Extrusion Profiles with CNC Machining
Aluminum heat sink extrusion is the most common and cost-efficient thermal solution for electronic devices and industrial applications. Our extruded aluminum heat sinks offer lightweight construction, excellent thermal performance, and cost-effective manufacturing.
Product Specifications
Product Name Aluminum Alloy LED Heat Sink
Raw Material Aluminium
Surface Treatment Mill finish, Anodizing, Sand Blasting, Powder coating
Equipment CNC machine, grinding and shot peening machine, Precise tensile strength testers, magnetic powder flaw detectors
Deep Processing Cutting, Drilling, Tapping, Polish, Milling
Certification ISO9001, SGS certificate, ROHS report
Usage High-power Semiconductor, Power Electronics cooling, LED/lamp electronic ballast, audio equipment, power amplifier circuits, automatic control meters
Delivery Time 7-10 Days after order confirmation
Technology Support
With over 600 employees including 50 R&D specialists, we provide comprehensive support from initial design to final production. Our process includes:
  • Rapid design drawing and specification development
  • Quick quotation and lead time confirmation
  • Prototype production and testing
  • Full-scale production after approval
Applications
Our heat sinks are essential components in various industries, including:
  • Audio Equipment
  • UPS/EPS power supplies
  • Inverters and transformers
  • Battery packs and new energy controllers
  • Charging piles and welding machines
  • Communication transmitters and base stations
  • Control cabinets and power regulators
Company Advantages
  • ISO 9001:2008 certified
  • Comprehensive production facilities including extrusion machines, powder painting lines, and CNC equipment
  • Advanced equipment and excellent R&D team
  • Professional designers and experienced workers
  • Strict quality control with 100% inspection
  • Highly skilled manufacturing processes
Technical Data
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Production Capabilities
Our comprehensive services include:
  • Custom profile design with CAD drawings and 3D models
  • Design optimization to reduce costs and improve performance
  • Complete "one-stop" production from design to surface treatment
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 0
Factory Equipment
Our manufacturing capabilities include:
  • 44 aluminum extrusion lines with maximum outer diameter of 350mm
  • 6800 ton extruder for industrial profiles up to 600mm diameter
  • 6 anodizing production lines with uniform oxidation film thickness
  • 4 powder spraying lines with high-quality Swiss equipment
  • Advanced CNC machining centers for complex profiles
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 1 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 2 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 3
Quality Assurance
We maintain strict quality control throughout our production process:
  • Professional inspectors examine all anodized products
  • Defective products are either reprocessed or scrapped
  • Color consistency is maintained across production batches
  • 100% inspection before packing
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 4 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 5 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6
Packaging and Shipping
All products are carefully packaged and undergo strict warehouse management procedures to ensure quality upon delivery.
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 7
Certifications
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 8
Notable Projects
We're proud to have supplied aluminum components for major projects including:
  • Soccer City Stadium in Johannesburg - the largest capacity stadium in Africa
  • Collaboration with Lobster Trailers, a Nordic trailer manufacturer
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 9 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 10
