60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile

Imagem Grande : 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile

Detalhes do produto:

Certificação:	SONCAP, ISO, RoHS, TUV
documento:	Folheto PDF do produto

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	500
Preço:	1

Contato

Descrição de produto detalhada

Liga:	6063	Temperamento:	T3-T8
Acabamento superficial:	Oxidação anódica	Tratamento de superfície:	Anodizando/pintura em pó
Tipo de polimento:	Polonês químico/mecânico	Resistência à tracção:	≥ 160MPa (T5), ≥ 205MPa (T6)
Força de escoamento:	≥ 110MPa (T5), ≥ 180MPa (T6)	Alongamento:	≥ 8%
Diâmetro máximo:	350mm	Capacidade de extrusão:	Unidade de 6800 toneladas
Anodizando linhas:	6	Linhas de revestimento em pó:	4
Centros fazendo à máquina do CNC:	12	máquinas de perfuração:	30 (50-100 toneladas)
Capacidade de produção:	50000PCS /MONTH
Destacar:	60 Series Aluminum Audio Amplifier Box , ISO9001:2008 Certified Aluminum Audio Amplifier Box , Custom Silkscreen Printing Aluminum Audio Amplifier Box

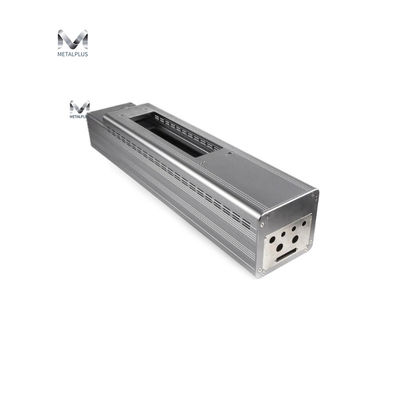

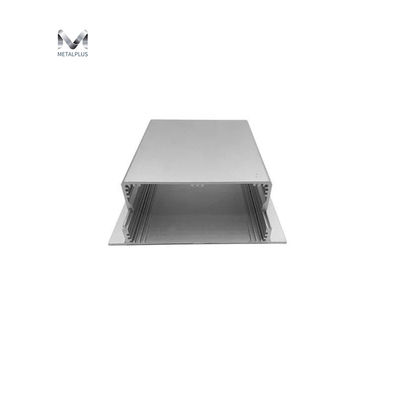

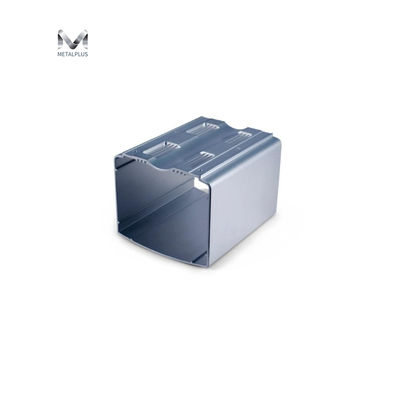

6063 Custom Silkscreen Printing Powder Painted Aluminum Audio Amplifier Box Profile

MetalPlus produces an extensive assortment of top-quality, custom-standardized casings. Our selection of industrial enclosures for electronics includes aluminum profile housings, die-cast aluminum boxes, standard aluminum chassis, rack mount enclosures, and CNC precision machined components.

Key Product Features

Alloy options: 6060/6061/6063/6082/6005 etc (T6/T5 available)
Custom lengths to meet specific requirements
Multiple surface treatments: Mill finish, Anodized, Powder Coated, Wooden Transfer
Comprehensive fabrication services: cutting, milling, punching, stamping, drilling, CNC, assembly
One-stop service from mold design to final delivery
OEM and custom designs welcome

Product Specifications

Aluminum top+bottom plate with aluminum case design
Ideal for rail transit, new energy, power equipment, meteorological testing, and marine monitoring applications
Extruded aluminum frame with die-cast aluminum panels for durability in hostile environments
Waterproof design with excellent heat dissipation properties
Convenient PCB or chassis mounting via horizontal sliding into inner-grooved body frame
Suitable for measuring instruments, industrial control boxes, industrial camera housings, and outdoor WiFi access points

Primary Technical Data

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Technical Support

Custom design services for extruded profiles including CAD drawings and 3D models
Professional R&D team for design analysis and optimization
One-stop service from product design to final delivery
Complete in-house production process control for quality assurance

Factory Equipment

MetalPlus operates 44 aluminum extrusion lines capable of producing commercial and industrial aluminum profiles with maximum outer diameters of 350mm. Our largest 6800-ton extruder can handle complex industrial profiles up to 600mm in diameter.

Anodizing Process

Our 6 anodizing lines produce uniform oxidation films with consistent color options including silver, black, gold, champagne, and imitation steel. Custom colors available upon request.

Painting Process

Our 4 powder spraying lines use high-quality Gema Switzerland spray nozzles with environmentally friendly paints for strong adhesion and durable color retention.

CNC Machining

12 PRATIC machining centers for complex profile processing
Fully automatic Wegoma cutting machines for precision cutting
30 punching machines (50-100 ton capacity)
10 stretch bending machines for precise angle bending
10 milling machines for various plane and groove machining

Packing and Shipping

Finished products are carefully packaged and undergo strict quality inspection before delivery. Our organized warehouse system ensures accurate product tracking and handling.

Certifications

Company History

2004: Recognized Brand of the Building Industry Material Market
2006: ISO9001 Certification
2009: Jiangsu Famous Brand Certificate
2012: Established partnerships with Panasonic and LG
2015: Became supplier for German clients
2017: Developed new baseboard heater products
2019: Partnered with world's largest heater manufacturers
2023: Expanding global distribution network

Notable Projects

Soccer City Stadium, Johannesburg: As the main aluminum supplier for Africa's largest stadium (94,000 seats), we contributed to this landmark project that received widespread acclaim.

Lobster Trailers: Our collaboration with this Nordic trailer giant demonstrates our ability to optimize designs and manufacturing processes for superior product performance.

School Furniture Project: Supplied aluminum legs for school desks, helping our client successfully complete their educational facility project.
